Hansin RIM

A process for Polyurethane (PU) molding, Reaction Injection Molding holds many advantages, allowing for designs that require complexity and creativity. Hansin commenced operations for RIM in 2015, specialising in Medical and Biotechnology parts which require stringent quality and design needs. Currently, PU is replacing many plastic parts of several biomedical equipment as it can be structurally and fundamentally stronger than other common materials.



Hansin works with Cannon Italy's RIM machine (6-8kg max. shot weight) and Baydur 110 (Covestro Germany) as raw material, to execute complex and intricate designs whilst ensuring quality. We will be with you throughout the process, together, as we work through from the design phase to DFM and fabrication to realise quality and cost-effective products through collaborative efforts.

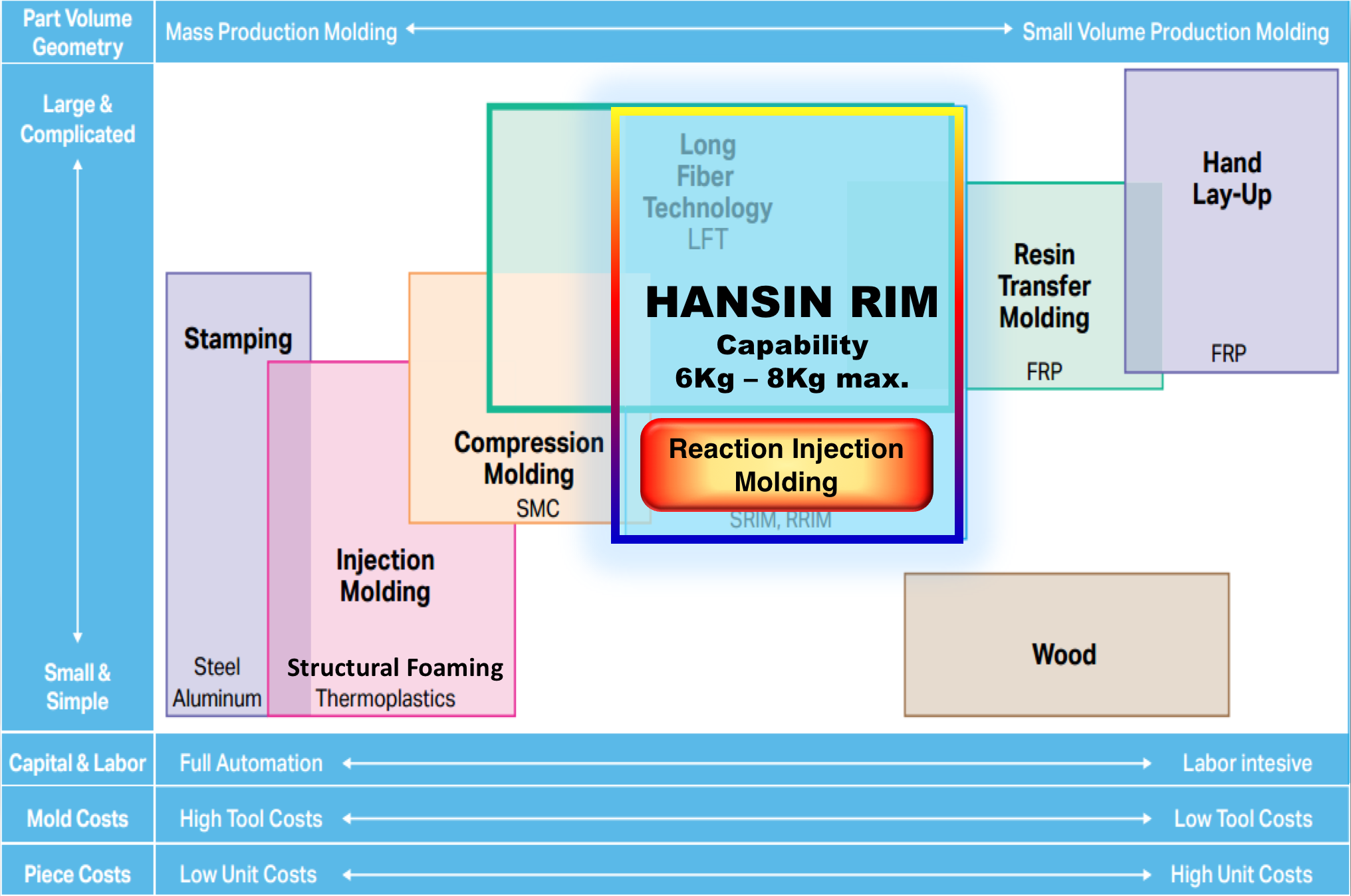

HANSIN RIM CAPABILITIES

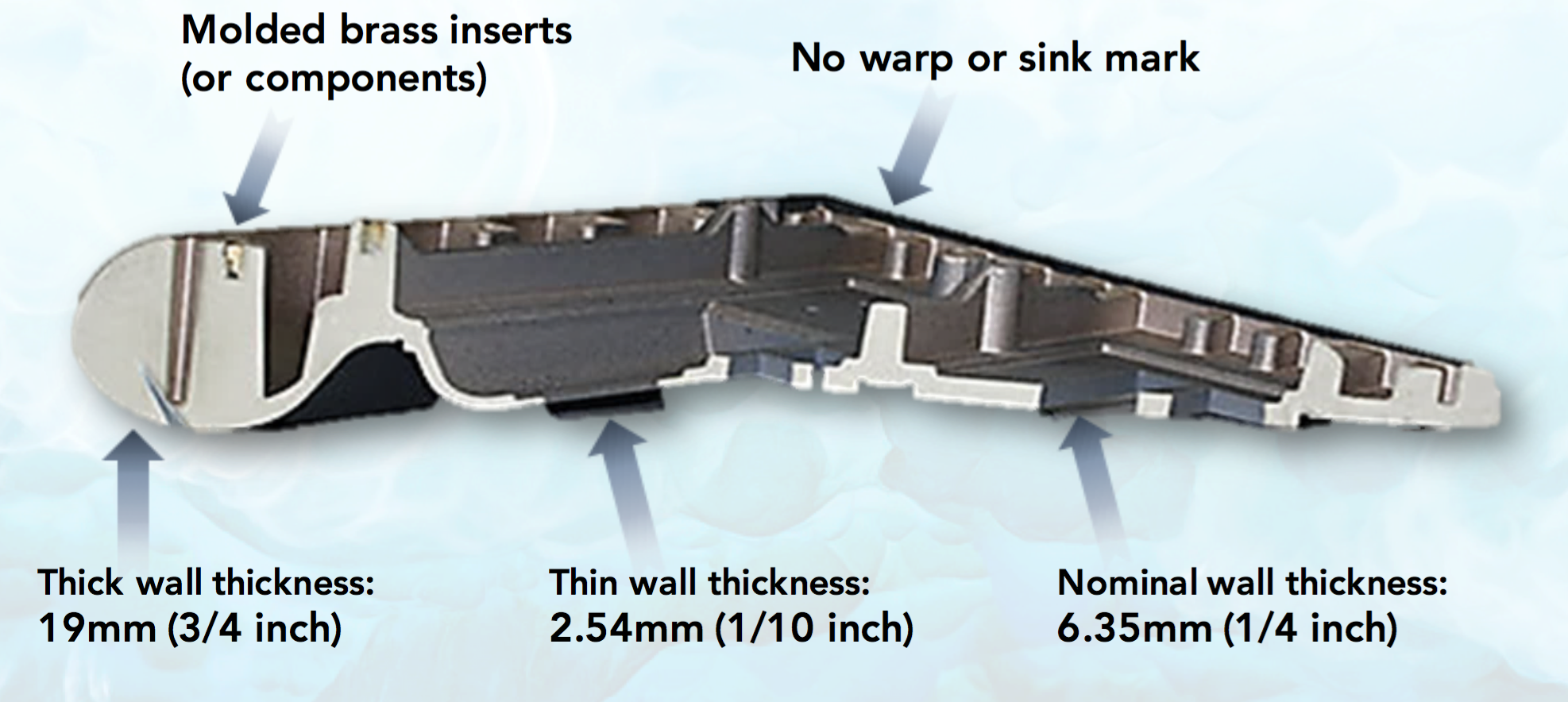

ADVANTAGES of RIM



________________________________________________________________________________________________________

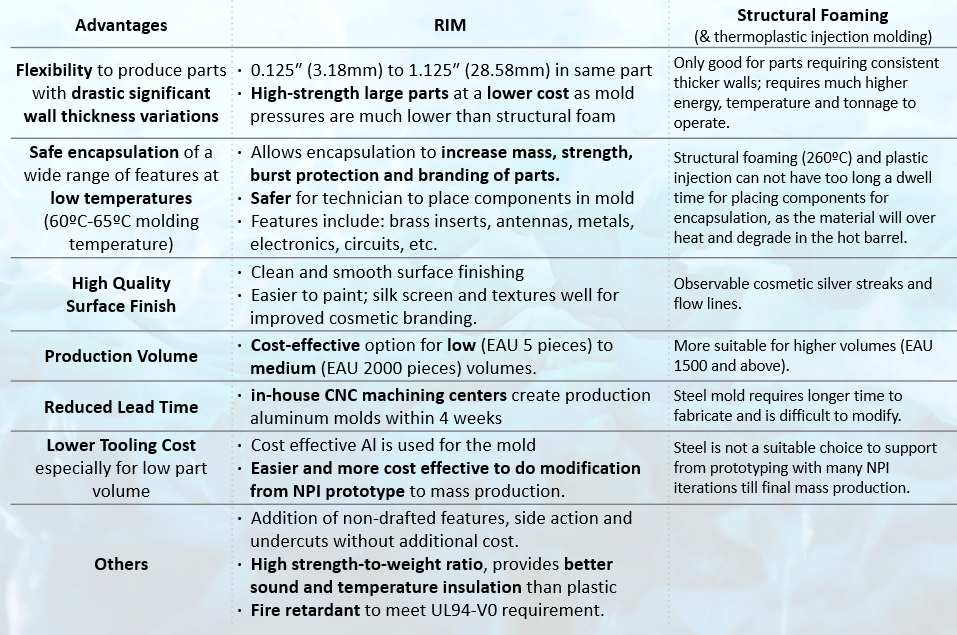

RIM vs STRUCTURAL FOAMING

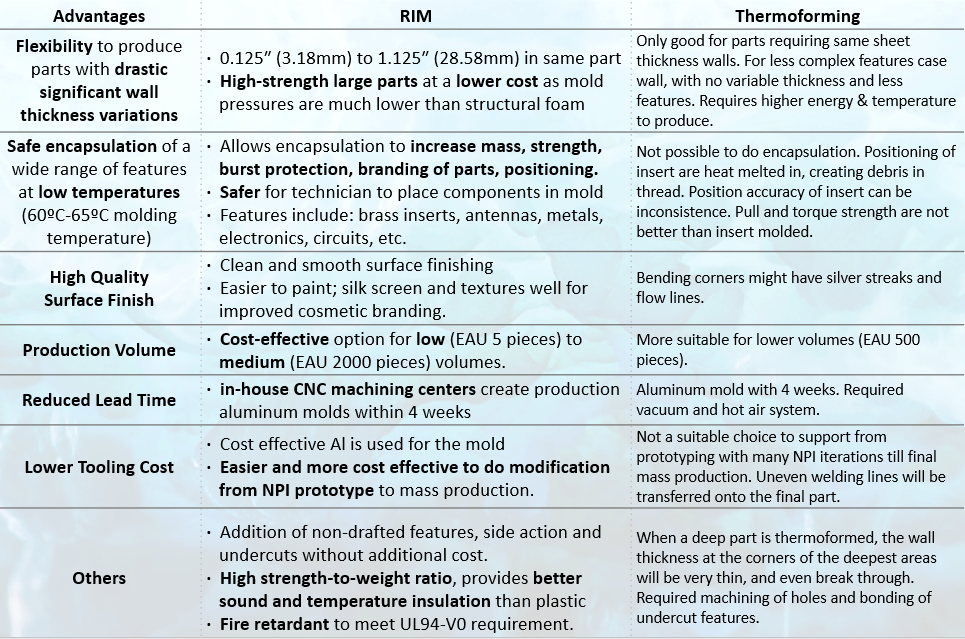

RIM vs THERMOFORMING

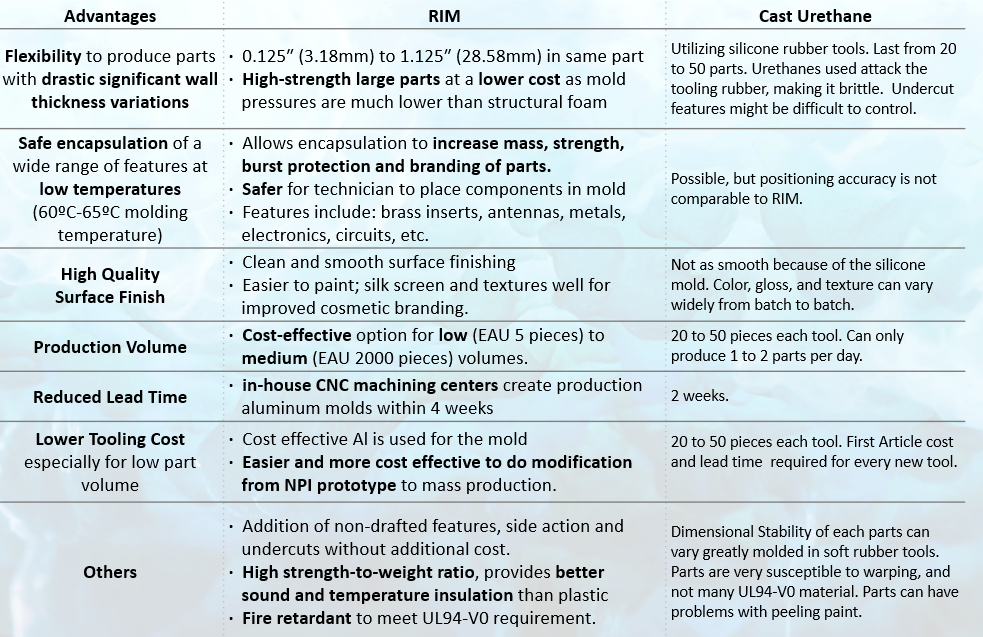

RIM vs CAST URETHANE





SECONDARY PROCESSING

Sub-assembly

Our sub-assembly services include: Ultrasonic welding, and Heat stick assembly.



Painting

Hansin understands the need for achieving both the physical and cosmetic aspect of finish requirements, working with our customers and vendors to achieve cost-effectiveness and high quality.

Our finishings include:

  • • Spray Painting (Manual, Automatic; or Semi-Automatic)
  • • Single Component or normal paint
  • • 2 components or PU paint (with hardener)
  • • Water-based Paint
  • • Powder Coating
  • • UV Coating
  • • EMI-shield Coating
  • • Soft touch Coating
  • • Textured Coating
  • • Printing (Plastic & Metal Parts)
  • • Silkscreen Printing
  • • Pad Printing
  • • Hot Ink Stamp Printing (using Silicon Rubber or Metal Hair Die)
  • • Laser Etching
  • • Inking



To find out more about RIM or schedule a visit, contact us at at sales@hansin-pre.com.cn
